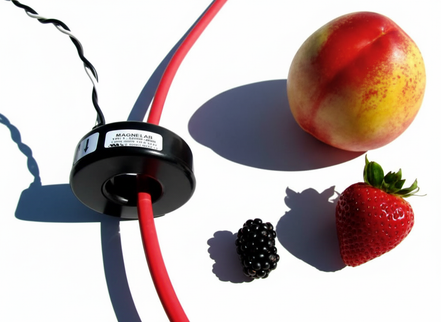

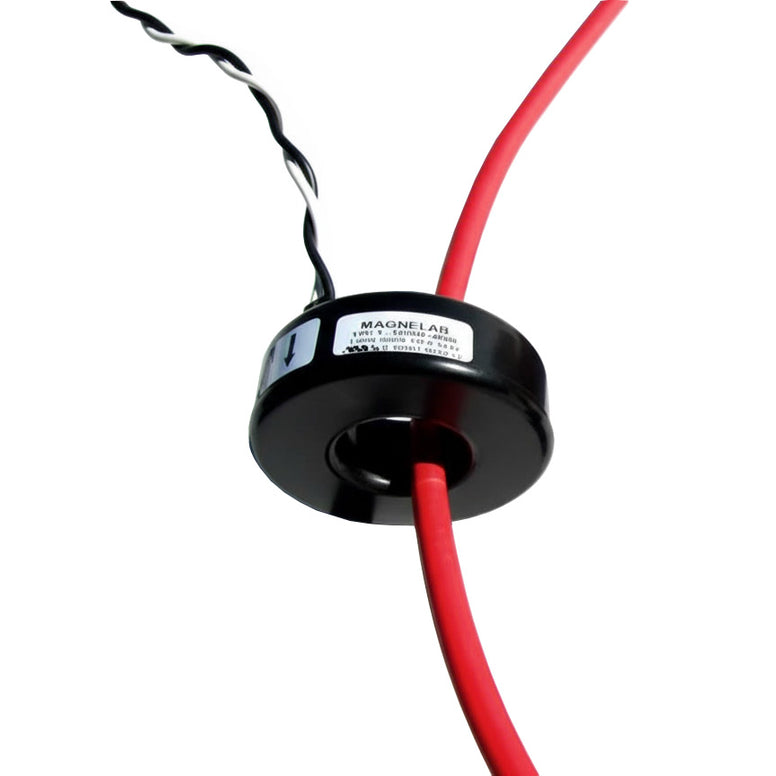

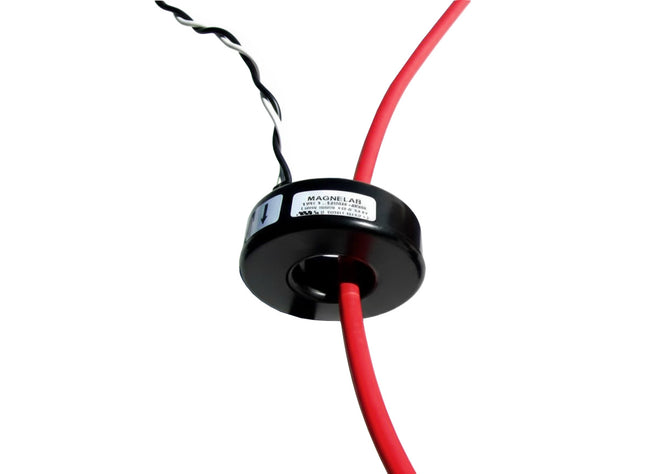

Magnelab UCT-1000 Solid-Core AC Current Sensor Series are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction comes with eight feet twisted leads. Custom outputs and other parameters are available at customer request.
UCT current transformer models from Magnelab have better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction of this current sensor comes with eight feet twisted leads. Please contact Magnelab for other ratings and customized designs. Revenue Grade version available with 0.5% linearity with less than 0.26° phase shift. Revenue Grade meets or exceed IEC metering class 0.5. See SPEC sheet for more details.
Features
- Rated input current from 50 Amp to 200 Amp
- Output 0.333 Volt AC at rated current with linearity accuracy ± 1% or better
- Phase angle
- Accuracy at 10% to 130% of rated current
- Operating temperature: -20 degrees Celsius to +110 degrees Celsius
- 8 ft. twisted-pair lead
- UL recognized/UL Standard 61010-1, EN60044-1
- Custom output and other parameters are available
