Features
- Rated input up to 200 Amp
- Output of 0.333 Volt at rated current Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Phase angle < 2 degrees (valid for 70A or higher)
- Operates from 30 Hz to 1,000 Hz
- 8 ft. twisted-pair lead
- Maximum Voltage: 600 V (on bare conductor)
- UL recognized, CE, and RoHS compliant

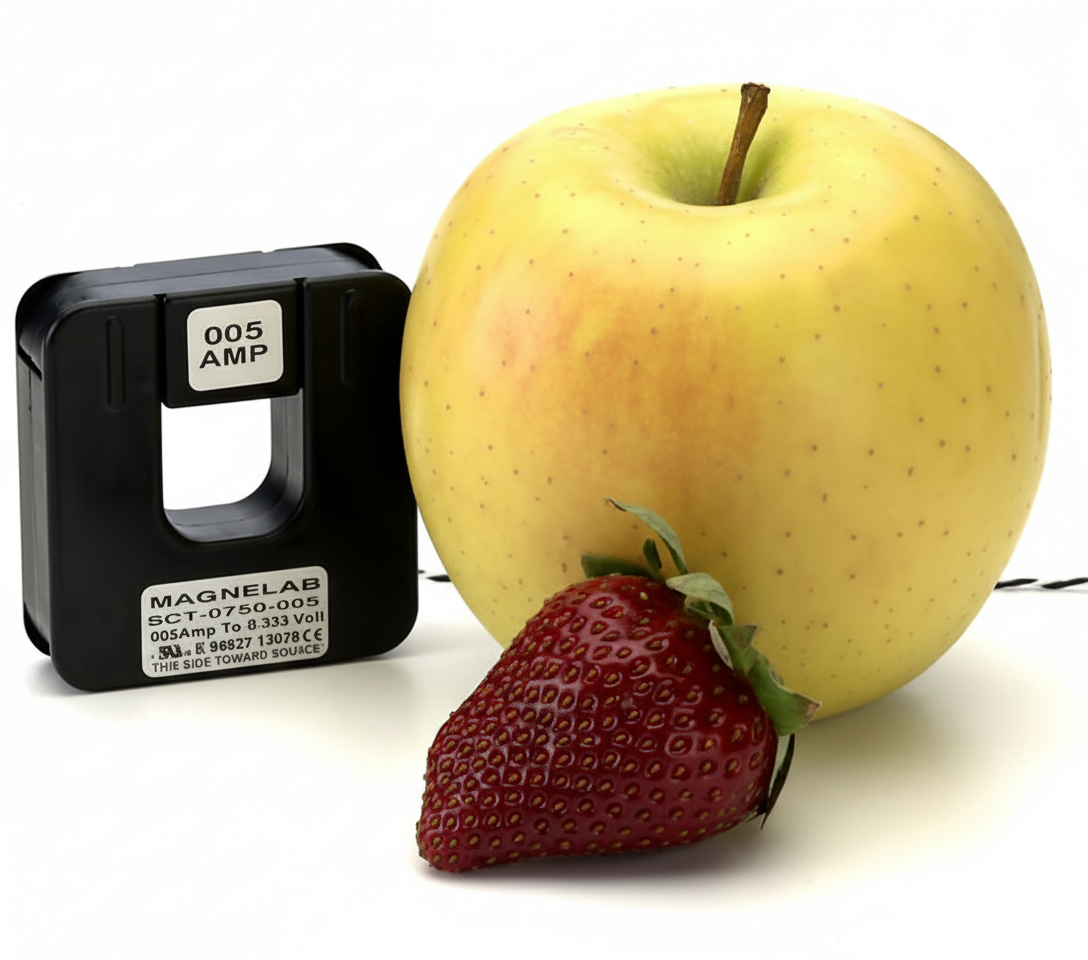

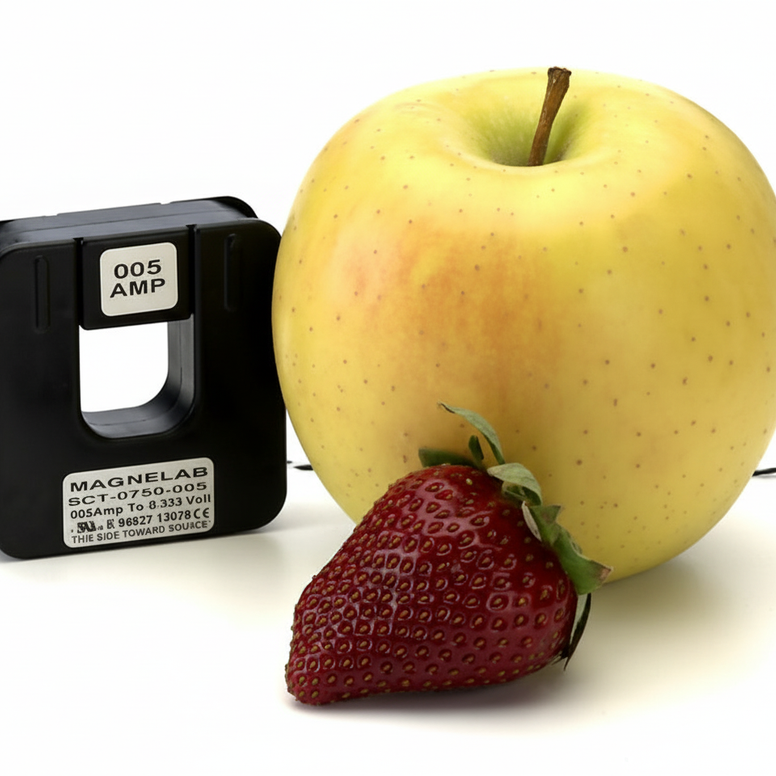

The SCT-0750 split core current transformer is made by current sensor manufacturer Magnelab. In fact, it transforms the AC input current of up to 200 Amps into an output voltage of 0.333 volt. These transformers are particularly suitable when installed on wiring that is already in place, as it can easily snap around the existing conductor. In addition, the SCT-0750 comes with a self-locking mechanism. These AC current sensors have a 0.75 inch opening. General usage includes recording, data logging, energy management, power monitoring and cost allocation.
The SCT-0750 features a rated input of up to 200 Amps. Its output at rated current is 0.333 volt. Linear accuracy on this current sensor is impressive at 1% either way, making its actual performance very close to estimated values. The phase angle is less than 2 degrees, applicable for 70 Amps input or higher. The operating frequency range is 30 Hz to 1,000 Hz.
