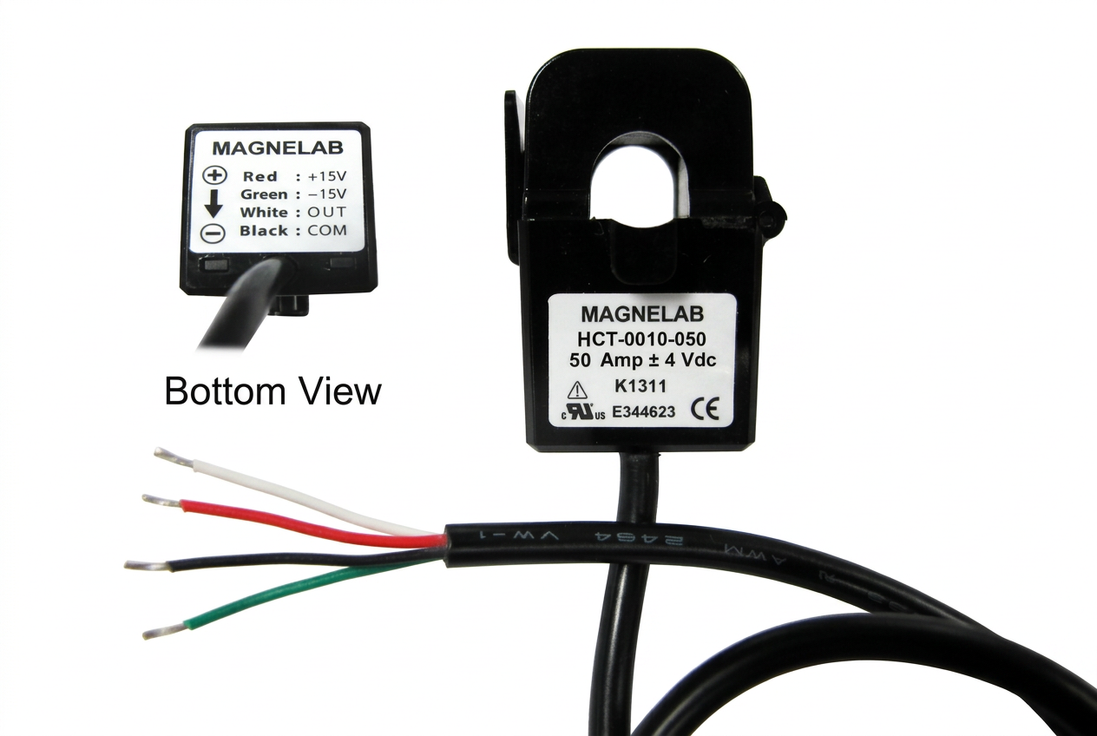

HCT-0010 Split Core DC Current Sensor

The Magnelab HCT-0010 DC Current Sensor split-core outputs 0-4Vdc and can measure current up to 50Adc.

The HCT-0010 Split-core current transducer sense DC current up to 50 amps passing through the center conductor.

Split- core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.

All materials used are UL certified.

Features:

• Input to 50 Amps DC

• Output 0-4 Vdc

• Accuracy 1% at the rated current

• System voltage: CAT III 600Vac

• UL recognized, CE and RoHS compliant
