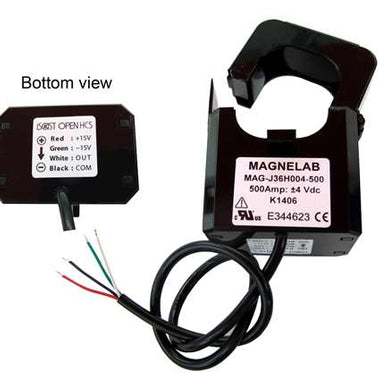

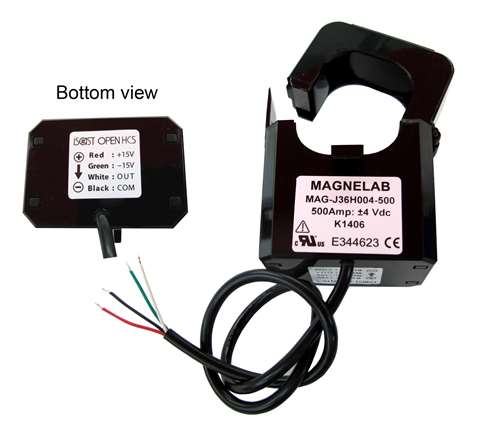

HCT-0036 Hall Effect Split Core Current Sensor

HCT-0036 split-core current Sensor “senses” DC current up to 500 amps passing through the center conductor.

Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The HCT-0036-500 has a self-locking mechanism.

Features:
• Rated input up to 500 Amp DC
• Output of ± 4 Vdc at rated current
• Accuracy at 1% at rated current
• System Voltage: DC 500 V, AC 1500 V / 1min. withstand
• UL recognized IEC 61010-1, CE, and Ro
