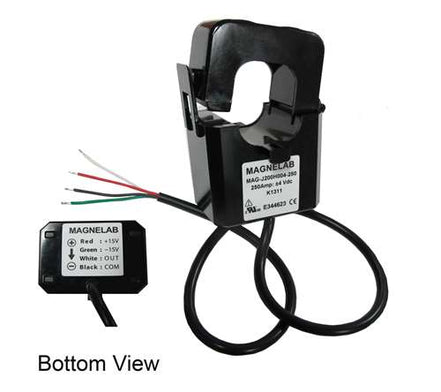

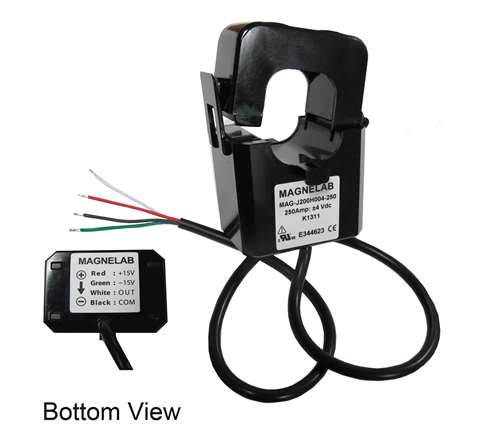

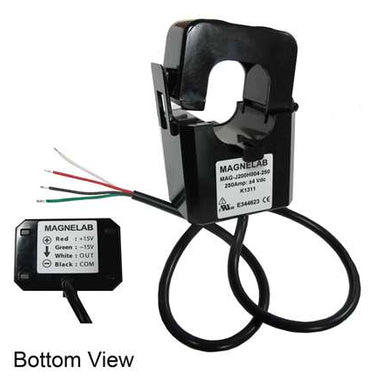

The HCT-0024 (previously MAG-J24H004) is a DC current transducer that uses the Hall Effect principle to sense 200 to 250A DC current and output 4 Vdc.
The HCT-0024 uses accurate laminating core split technology and is designed for strong durability while providing accuracy in low current situations.
The HCT-0024 is a compact one-touch split structure, allowing easy installation. It is accurate and passes IEC61010-1, UL61010-1, and EN61010-1.
Features
- Rated input up to 250 Amp DC
- Output of ± 4 Vdc at rated current
- Accuracy at 1% at rated current
- UL, CE and RoHS Compliant
System Voltage: CAT III 600 Vac
Description
Magnelab’s HCT-0024 -XXX split-core current transformer “senses” DC current up to 250 Amps passing through the center conductor.
Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor.
The HCT-0024 has a self-locking mechanism.
