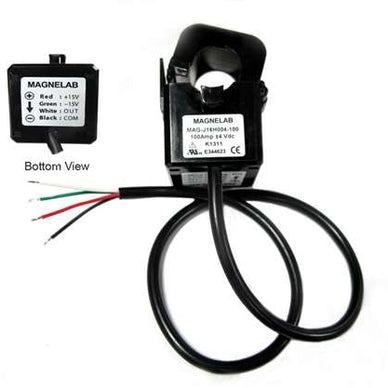

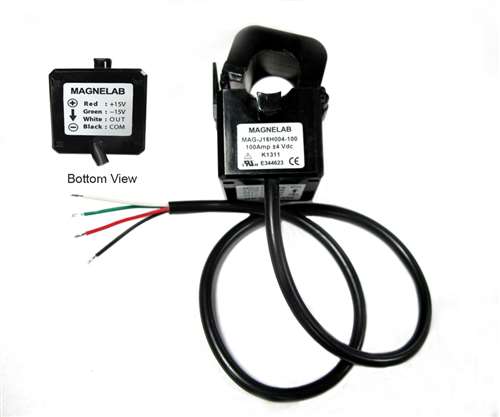

HCT-0016 Hall-Effect Split-Core Current Transducer

Magnelab's HCT-0016 (50A and 100A) DC Current Sensor “senses” DC current up to 100 Amps passing through the center conductor. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The HCT-0016-100 has a self-locking mechanism.

Features

• Rated input up to 100 Amps DC
• Output of +/- 4 Vdc at rated current
• Accuracy 1% at rated current
• System Voltage: CAT III 600VAC
• UL recognized, CE and RoHS Compliant

For Bulk Orders Inquire by Phone or Email
908-272-9263
onlineorders@ventronicspower.com

• Specs Sheet
